To accurately monitor the current Fill Level and Temperature of a container, it is essential to install, activate, and assign a G2 Fill Level Sensor to the container. This article shows how to allocate a G2 Fill Level Sensor to a container.
To ensure a smooth installation process, we highly recommend Turning ON the G2 Fill Level Sensor and allocating it to the container just before installation.

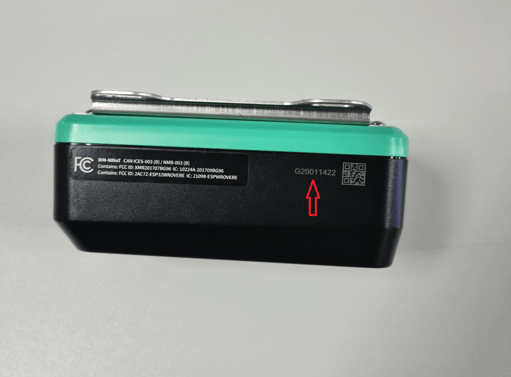

Make sure to verify that the correct Identification Number of the G2 Fill Level Sensor has been assigned to the container. The Identification Number of the G2 Fill Level Sensor can be found on the side of the sensor, right next to the QR Code.
- Download the Superfy App if you haven't already done so.
- Open the Superfy App on your phone.
Use your login to access the Superfy App.
Don’t have a login?
Please reach out to your Company Admin, Account Manager, Customer Success Manager, or email support@superfy.com. They will be able to assist you in creating a login for your account.
- Your phone's GPS will show your current location as a Blue Dot on the map.
.png?width=275&height=606&name=Media%20(3).png)
- Tap on the Container displayed at your current location on the Map, then tap on the View option.

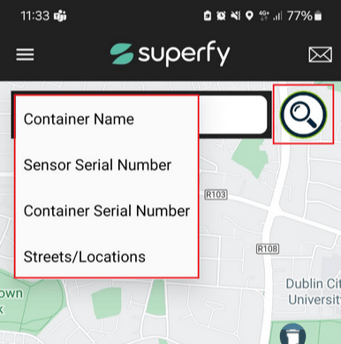

If you're not at the container's location, use the Magnifying Glass located at the top left-hand side in the Map View to search by Container Name, Sensor Serial Number, Container Serial Number and Streets/Location.
Alternatively, you can tap on Explorer located at the bottom of the screen. This will provide you with a comprehensive list of all the Containers available for viewing.
- Tap on the Container of your choice.
- Tap on the Arrow beside the Container Name at the bottom of the screen to open the Container Details screen.
.png?width=319&height=268&name=Media%20(4).png)

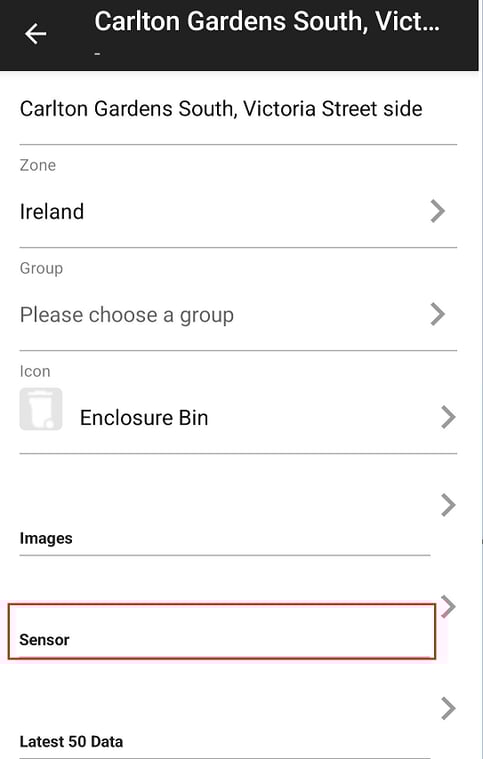

- On the Container Details screen, scroll down to the Sensor field and tap.
Before you allocate a new sensor to a container, you must first detach any sensor that is currently assigned to it. A container can only have one sensor assigned at a time, so this step is essential for a successful installation.
If a sensor is currently not allocated to the container, skip the below.

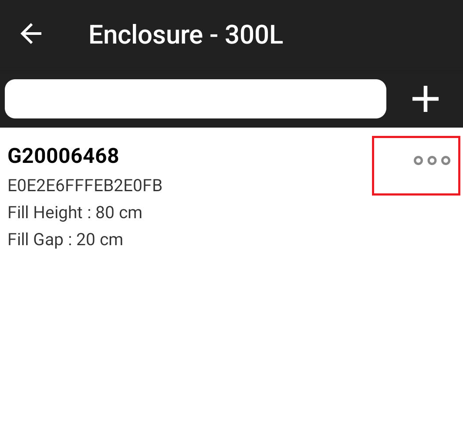

- Tap on the 3 dots beside the Sensor ID Number
- Tap on Detach Sensor to detach the sensor from the container.
- Tap Okay on the below pop-up message.

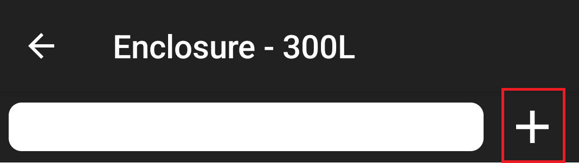

- To add a new Sensor, tap the + icon
- Tap on Sensor Name to search and allocate a sensor
- Tap on Select from List
If you are unable to find the sensor in the list of available sensors, it is possible that the sensor has not been allocated to your account. In this case, please urgently reach out to your Account Manager, Customer Success Manager, or contact support@superfy.com for assistance.
- Alternatively, Search for the Sensor ID Number using the Search Bar.
- Tap on the Sensor ID Number to allocate it to the container and tap on Done.
- Enter the accurate Fill Height and Fill Gap measurements.
- Tap on Allocate to allocate the sensor to the container.

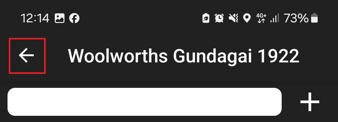

• Tap on Back (</←) to return to the Container Details screen

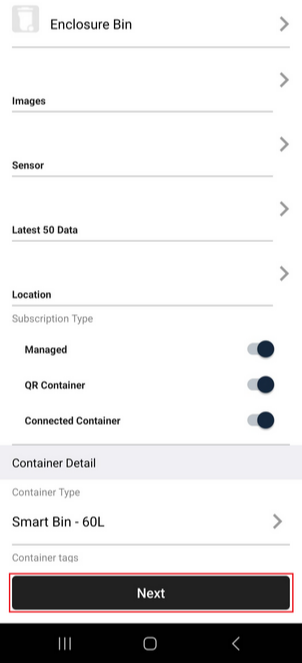

• Tap on Next located at the bottom of the screen
• Tap Save Container to update the container details.
- After saving the container, select Okay on the pop-up message.
If the sensor is turned ON, the container icon will change colour accordingly from Grey (
) to one of the below depending on the fullness level or the applied Intermidate or Max Threshold.
Before leaving site, it is crucial to:
Take a Manual Reading to ensure that the sensor is turned on and transmitting data to the platform. Confirm that the date and timestamp are accurate, and compare the container's fill level with the actual contents of the container. This step is important to ensure accurate monitoring and management of the container.
