The Fleet module map displays live vehicle tracking, including current location, historical routes, fuel add-ons and usage data, as well as a summary of driving activities such as speeding and idling. This article explains how to navigate the map.
- Log into your Superfy Account

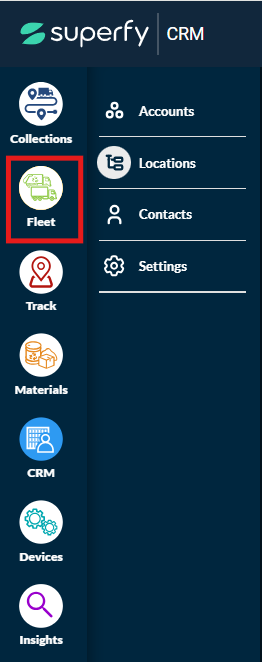

Upon logging into the platform, you will be automatically taken to the Collections module. Navigate to the Fleet module located on the top left-hand side of the screen.
- You will be automatically directed to the Fleet Map view which is depicted by the below icon
- Click on the Map Action tools on the top left corner of the Map
Scaling tool - to zoom in/out the scale of the map.
Street View - is Google Map specific and aand allows you to view a location in Street View. Click and drag the Pegman to the desired location to see its Street View.
Measure Distance - The ruler allows measuring the distance in a straight line.
If necessary, you can measure the distance between more than two points by just adding new points. The measurement will be shown for the total length on the lower-left corner, however, on the map, you will be able to see the progressive distance.
-
Full screen View - If needed, you can enter the full-screen mode of the map. To exit, press the same button or use Esc button on your keyboard.
- Search for specific addresses with the search bar
Map View Settings
- Click on the map view Settings tool on the top right corner
-

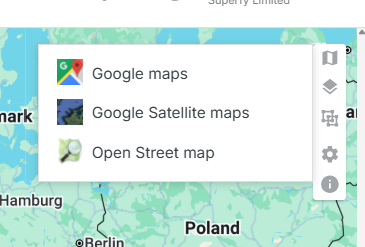

Map type - The platform, depending offers several map types. Select the one that best fits your needs.
Map layers -
The platform has several layers for maps available. Toggle the switch to either enable/disable each of the necessary layers.
Other data - -
If your company has several units at a couple of spots it might be easier to see the whole picture if icon grouping is enabled.
When this option is selected, the nearest few units will be shown as a group. The colors correspond to the overall system coloring scheme. See more ar Informational Icons.
Beacons - If there's any BLE devices in the platform, with this button you can enable or disable whether or not you want to see the BLE device reflection on the map.
-
Centering Button
On the lower-left corner of the map, you will find the centering button. By default, when opening a group of units or a single unit they will be always centered for a better overview.
In case you have wondered off the centered view, you can easily get back to the centering by pushing the Show All button.
If you have filtered out a group of cars and then selected a specific unit and pressed this button, it changes to Back To Vehicle button and allows you to quickly get back to the single unit view.
Map pointing Tools
- If right-clicking in any spot on the map options are offered for that spot.
- Point details - this option displays the nearest address and exact coordinates of the selected spot.
- Nearest cars - this option filters the 20 nearest vehicles based on their last updated coordinates, regardless of status or other parameters.
