Installing a G2 Fill Level Sensor Using a Superfy Sidewall Bracket in an 1100L Wheelie Bin.

This video provides a step-by-step guide on the best practices for installing a G2 Fill Level Sensor with a Superfy Sidewall Bracket in a 1100L bin.

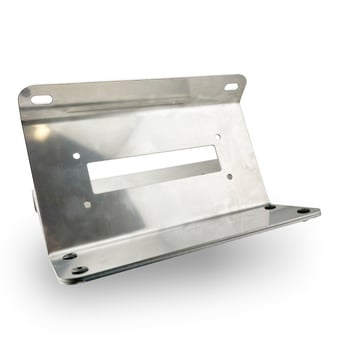

 G2 Fill Level Sensor and SideWall Bracket



G2-WITH Optional Bracket-1 1

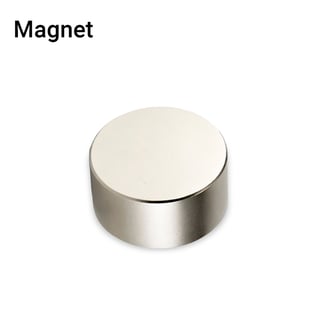

Tools Required





Power Drill-jpg

Step 1

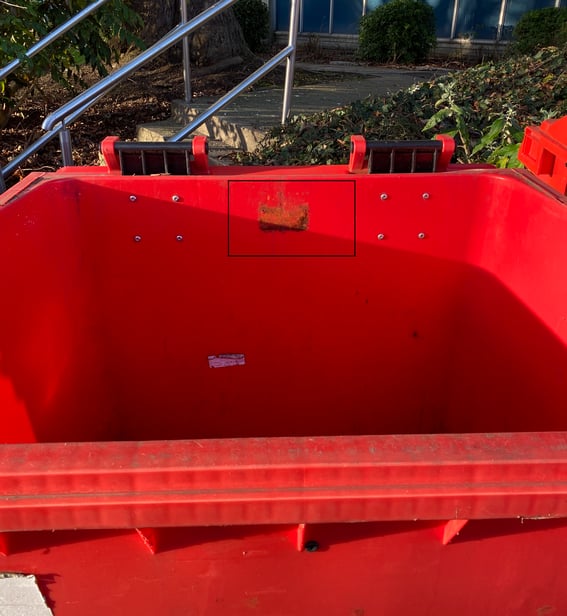

Determine the best location for installing the sensor within the bin. For a 1100-liter bin, it is advisable to position the sensor at the center of the back wall for an optimal angle.

Step 2

Place the bracket with the mounted sensor at the center of the back wall of the bin. Use a marker to clearly mark the four locations for the screws to secure the sensor.









Step 3

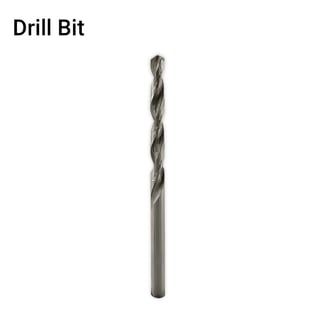

Carefully drill four holes at the marked locations using Drill and and the appropriate Drill Bit.

Step 4

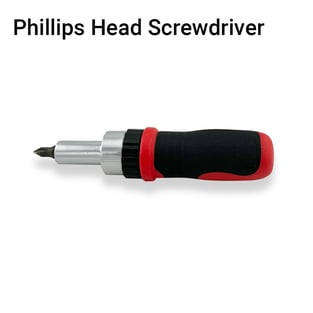

Align the bracket’s holes with the drilled points on the wall. Using an appropriate Philips head screwdriver and a wrench, securely tighten the bolts and nuts. Double-check that the bracket is properly secured.



Step 5

Take the Fill Height and the Fill Gap Measurement using a measuring tape or a Laser if available.

Step 6

Allocate the Sensor to the container using the Superfy App and Turn ON the G2 Fill Level Sensor.

Step 7

Perform a Manual Reading to confirm that the sensor is accurately measuring the bin's fill level.

Learn More on how to Troubleshoot False Fill Level Reading.
